Open Building Institute has created a module home system that can expand with one’s budget, present or future. The homeowner can choose from a library of design modules or they can design their own home. There is even a module with an aquaponic greenhouse allowing the homeowner to grow all of the food needed year round. The home is replete with eco-friendly features like 3000v Photo-voltaic panels, radiant hydronic heating, rain water collection systems and many other smart technologies.

The people behind this project want to share their knowledge with the world for free, via open source and Kickstarter. Marcin Jakubowski Ph.D from Open Source Ecology and Catarina Mota Ph.D of the Open Building Institute have teamed up to create affordable, eco-friendly modular smart home systems to be made available to the public. Jakuboski founded Open Source Ecology in 2003 by creating The Global Village Construction Set which consists of the 50 industrial tools needed to create a civilization from scratch. Now Jakubowski and Mota are using some of those same machines from the GVCS to build these innovative homes.

Open Building Institute is developing an open source eco-building toolkit to put the construction of ecological housing within the reach of everyone—by making it easier, cheaper, and faster. With this toolkit anyone can:

  • Design a home or greenhouse—of any size—using a library of modules that fit together like building blocks
  • Learn how to build with instructionals and training programs
  • Organize the rapid-build of a house loaded with ecological features

The OBI toolkit is entirely open source – free to use and modify.

OSE library_1b 700x 525
Shares

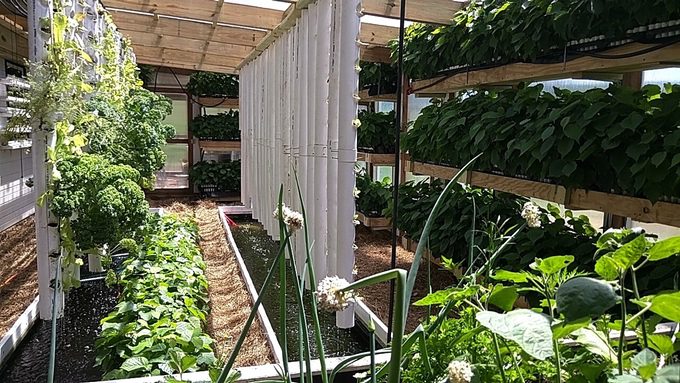

OSE greenhouse
Shares

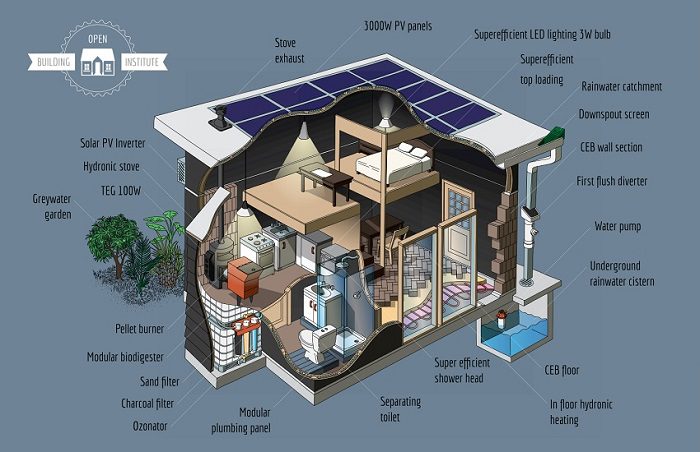

ose infographic - off-grid utilities 700x452
Shares

Features included in the 2016 Starter Home build:

  • 3000W Photovoltaics for off-grid energy
  • Biogas Digester
  • Grid-Tie Inverter
  • Open Source Thermoelectric Generator
  • Super-efficient LED Lights (3W Each)
  • Super-efficient Refrigerator (8W average)
  • Pellet Burner for House and Water Heating
  • In-Floor Hydronic Heating
  • CEB Floor
  • 2 CEB Wall Modules
  • Modular Plumbing Fixtures
  • Modular Electric Panel
  • Passive Solar Design
  • Biofiber Insulation
  • Rainwater Collection
  • Super-efficient Shower Head
  • Water purification: sand, charcoal, ozonator
  • Separating Toilet
  • Greywater Garden

For a more complete description of these features, see Features Narrative.

The idea behind the Open Building Institute is to put home ownership within everyone’s reach without being burdened with years of debt. The starter seed home is a 700 sq foot model which includes the aquaponic greenhouse component for under $40,000. There is much more info in the above Kickstarter campaign.
